环境信息:
RKE2 版本:
节点 CPU 架构，操作系统和版本：
集群配置:
3server
问题描述:
cluster.yaml中配置了cidr 但是kube-controller-manager启动的时候用了默认的cidr 10.42.0.0/24
重现步骤:

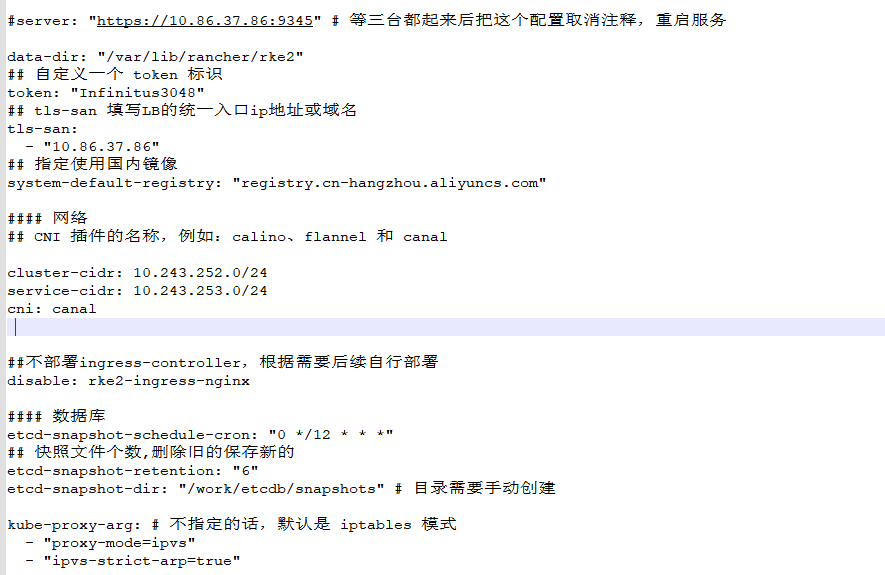

cluster.yaml 内容

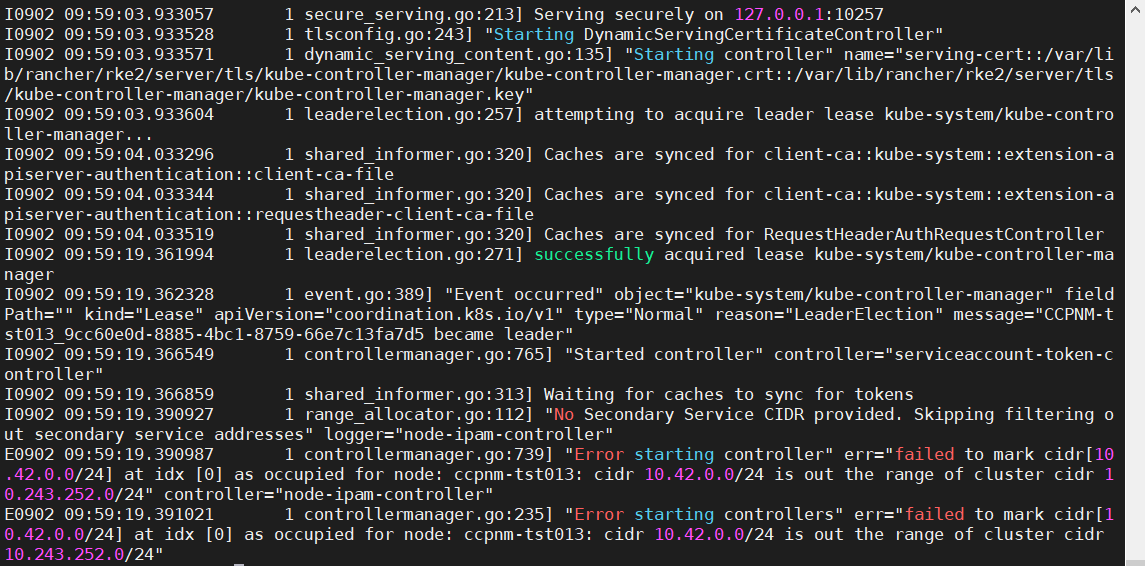

kube-controller-manager启动报错
预期结果:
实际结果:

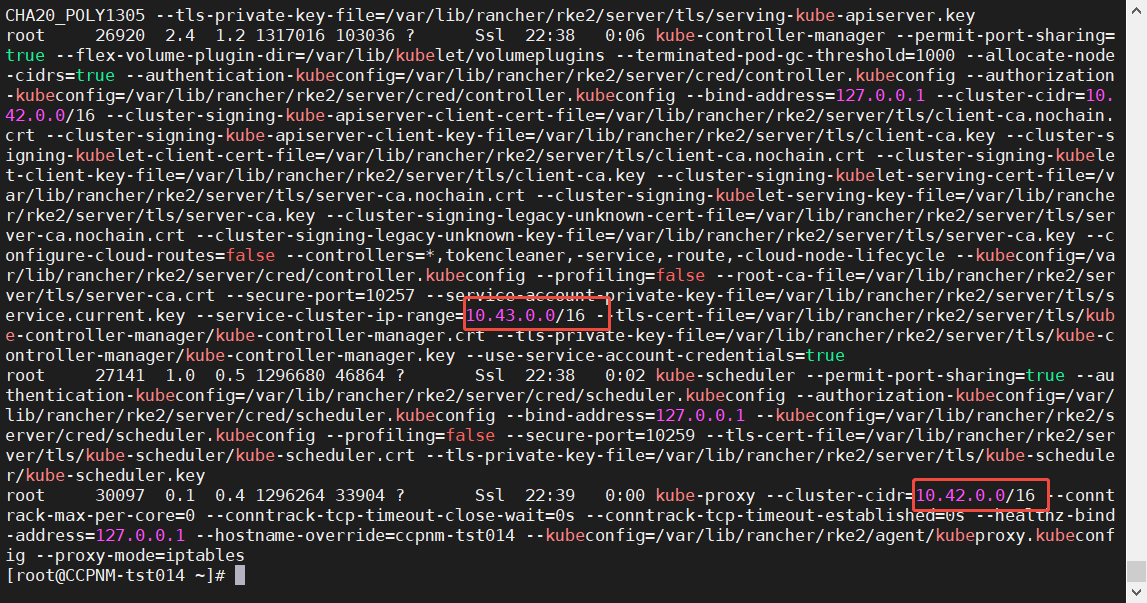

kube-controller-manager启动报错
有没有大神遇到过 这种情况该咋处理
使用 v1.32.8+rke2r1 验证，没重现：
root@ksd:~# mkdir -p /etc/rancher/rke2
root@ksd:~# vi /etc/rancher/rke2/config.yaml
root@ksd:~# cat /etc/rancher/rke2/config.yaml
cluster-cidr: 10.243.252.0/24
service-cidr: 10.243.253.0/24
cni: canal
root@ksd:~# curl -sfL https://get.rke2.io | sh -
[INFO] finding release for channel stable
[INFO] using v1.32.8+rke2r1 as release
[INFO] downloading checksums at https://github.com/rancher/rke2/releases/download/v1.32.8%2Brke2r1/sha256sum-amd64.txt
[INFO] downloading tarball at https://github.com/rancher/rke2/releases/download/v1.32.8%2Brke2r1/rke2.linux-amd64.tar.gz
[INFO] verifying tarball
[INFO] unpacking tarball file to /usr/local
root@ksd:~# systemctl enable rke2-server.service
Created symlink /etc/systemd/system/multi-user.target.wants/rke2-server.service → /usr/local/lib/systemd/system/rke2-server.service.
root@ksd:~# systemctl start rke2-server.service
root@ksd:~# export KUBECONFIG=/etc/rancher/rke2/rke2.yaml
/var/lib/rancher/rke2/bin/kubectl get nodes
NAME STATUS ROLES AGE VERSION
ksd Ready control-plane,etcd,master 83s v1.32.8+rke2r1
root@ksd:~# /var/lib/rancher/rke2/bin/kubectl get pods -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system cloud-controller-manager-ksd 1/1 Running 0 79s
kube-system etcd-ksd 1/1 Running 0 79s
kube-system helm-install-rke2-canal-fwrtk 0/1 Completed 0 80s
kube-system helm-install-rke2-coredns-tcwvf 0/1 Completed 0 80s
kube-system helm-install-rke2-ingress-nginx-9h9dw 1/1 Running 0 80s
kube-system helm-install-rke2-metrics-server-fndls 0/1 Completed 0 80s
kube-system helm-install-rke2-runtimeclasses-gbt79 0/1 Completed 0 80s
kube-system helm-install-rke2-snapshot-controller-455k5 0/1 Completed 1 80s
kube-system helm-install-rke2-snapshot-controller-crd-tps7n 0/1 Completed 0 80s
kube-system kube-apiserver-ksd 1/1 Running 0 79s
kube-system kube-controller-manager-ksd 1/1 Running 0 79s
kube-system kube-proxy-ksd 1/1 Running 0 79s
kube-system kube-scheduler-ksd 1/1 Running 0 79s
kube-system rke2-canal-xbn27 2/2 Running 0 63s
kube-system rke2-coredns-rke2-coredns-86c455b944-n7bdw 0/1 Running 0 65s
kube-system rke2-coredns-rke2-coredns-autoscaler-79677f89c4-4d6ws 1/1 Running 0 65s
kube-system rke2-ingress-nginx-admission-create-5mx2k 1/1 Running 0 19s
kube-system rke2-metrics-server-69bdccfdd9-l6cb6 0/1 Running 0 20s
kube-system rke2-snapshot-controller-696989ffdd-x8cnv 1/1 Running 0 20s
我裂开了 重试了几次都是这样
你详细的写一下重现步骤，比如你的操作系统，你的 rke2 版本，最好把你所有的操作都 copy 进来，配置相关的尽量别截图，文本复制过来。
1.操作系统：
centos7.9 Linux CCPNM-tst015 3.10.0-1160.71.1.el7.x86_64 #1 SMP Tue Jun 28 15:37:28 UTC 2022 x86_64 x86_64 x86_64 GNU/Linux
rke2版本：v1.32.8+rke2r1
2.系统初始化：
添加网桥过滤及地址转发配置
echo “配置内核参数…”
cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
vm.swappiness = 0
EOF
加载 br_netfilter 模块
echo “加载br_netfilter模块…”
echo “modprobe br_netfilter” >> /etc/rc.d/rc.local
modprobe br_netfilter
加载网桥过滤配置文件
echo “应用内核参数…”
sysctl -p /etc/sysctl.d/k8s.conf
安装 ipset 及 ipvsadm
echo “安装ipset及ipvsadm”
yum -y install ipset ipvsadm
ipvs作为kube-proxy的转发机制，开启ipvs模块支持
cat > /etc/ipvs.modules << EOF
#!/bin/bash
modprobe – ip_vs
modprobe – ip_vs_rr
modprobe – ip_vs_wrr
modprobe – ip_vs_sh
modprobe – nf_conntrack
EOF
chmod +x /etc/ipvs.modules && bash /etc/ipvs.modules
3.离线安装
gitlab上下载离线安装包：
mkdir /root/rke2-artifacts && cd /root/rke2-artifacts/
curl -OLs https://github.com/rancher/rke2/releases/download/v1.38.2%2Brke2r2/rke2-images.linux-amd64.tar.zst
curl -OLs https://github.com/rancher/rke2/releases/download/v1.38.2%2Brke2r2/rke2.linux-amd64.tar.gz
curl -OLs https://github.com/rancher/rke2/releases/download/v1.38.2%2Brke2r2/sha256sum-amd64.txt
curl -sfL https://get.rke2.io --output install.sh
INSTALL_RKE2_MIRROR=cn INSTALL_RKE2_TYPE=“server” INSTALL_RKE2_VERSION=v1.32.8+rke2r1 INSTALL_RKE2_ARTIFACT_PATH=/root/rke2-artifacts sh install.sh
mkdir -p /etc/rancher/rke2 /var/lib/rancher/rke2/db/snapshots
配置/etc/rancher/rke2/config.yaml:
cat > /etc/rancher/rke2/config.yaml << EOF
write-kubeconfig: “/root/.kube/config”
write-kubeconfig-mode: “0644”
data-dir: “/var/lib/rancher/rke2”
token: “Infinitus3048”
tls-san:
-“10.86.37.86”
system-default-registry: “registry.cn-hangzhou.aliyuncs.com”
kube-controller-manager-arg:
-“node-cidr-mask-size=27”
cluster-cidr: 10.243.252.0/24
service-cidr: 10.243.253.0/24
cni: canal
disable: rke2-ingress-nginx
etcd-snapshot-schedule-cron: “0 */12 * * *”
etcd-snapshot-retention: “6”
etcd-snapshot-dir: “$(data-dir)/db/snapshots”
kube-proxy-arg: # 不指定的话，默认是 iptables 模式
- “proxy-mode=ipvs”
- “ipvs-strict-arp=true”
EOF
启动：
systemctl start rke2-server
我使用 centos 7.9，并且根据你的步骤复制粘贴下来的，还是没重现，我不知道是不是你的 config.yaml 格式错误了导致的
[root@ksd-centos ~]# cat /etc/rancher/rke2/config.yaml
write-kubeconfig: "/root/.kube/config"
write-kubeconfig-mode: "0644"
data-dir: "/var/lib/rancher/rke2"
token: "Infinitus3048"
tls-san:
- "10.86.37.86"
kube-controller-manager-arg:
- "node-cidr-mask-size=27"
cluster-cidr: "10.243.252.0/24"
service-cidr: "10.243.253.0/24"
cni: "canal"
disable:
- rke2-ingress-nginx
etcd-snapshot-schedule-cron: "0 */12 * * *"
etcd-snapshot-retention: 6
etcd-snapshot-dir: "/var/lib/rancher/rke2/db/snapshots"
kube-proxy-arg:
- "proxy-mode=ipvs"
- "ipvs-strict-arp=true"
[root@ksd-centos ~]# /var/lib/rancher/rke2/bin/kubectl get pods -A -o wide | grep kube-controller-manager
kube-system kube-controller-manager-ksd-centos 1/1 Running 0 4m11s 10.201.170.180 ksd-centos <none> <none>
[root@ksd-centos ~]#
另外根据 rke2 支持矩阵 已经不支持 centos 了，可以选取一个受支持的 OS 来安装 rke2
如果您在生产环境中使用 Rancher，希望获得更专业、及时的技术支持，也欢迎了解一下我们的商业订阅服务。可以点击论坛右上角聊天（
）图标，私信联系我了解详细信息，我们有中文支持团队为您服务
我换成v1.32.7+rke2r1的离线版本就能成功部署了
