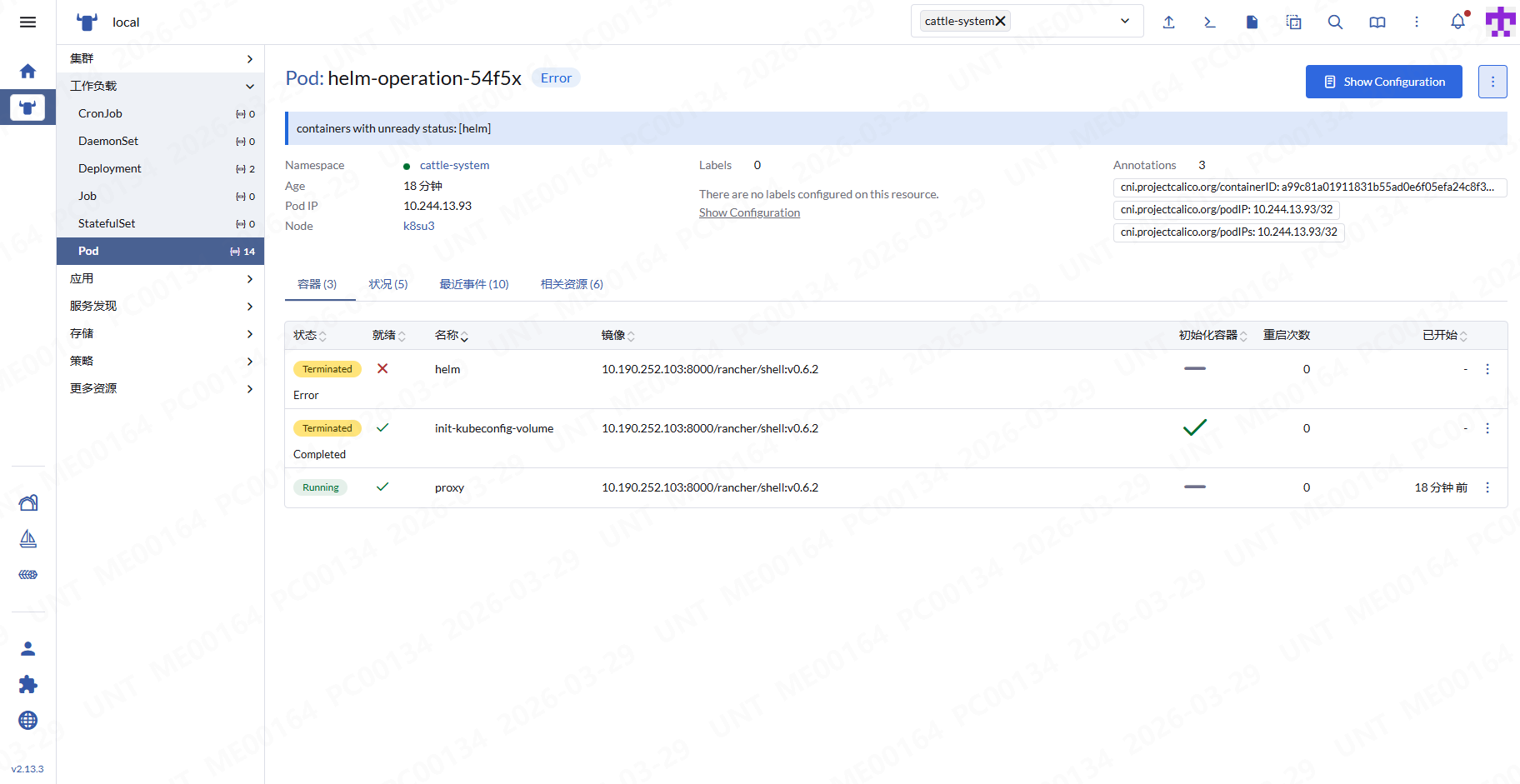

Helm部署Rancher 2.13.3 ，如图：Pod: helm-operation-54f5x Error ，这个是什么问题？image本地仓库有的。
Rancher Server 设置
- Rancher 版本：2.13.3
- 安装选项 (Helm Chart):
- 如果是 Helm Chart 安装，需要提供 Local 集群的类型（RKE1, RKE2, k3s, EKS, 等）和版本： v1.34.6
- 在线或离线部署：在线部署
pod describe信息：
[root@k8su1:~/app]# kubectl get pods -n cattle-system
NAME READY STATUS RESTARTS AGE
helm-operation-89wfp 1/2 Error 0 26m
helm-operation-8lrjr 1/2 Error 0 37m
helm-operation-8qwr6 1/2 Error 0 14m
helm-operation-jbwf2 2/2 Running 0 111s
helm-operation-jggnr 1/2 Error 0 20m
helm-operation-pp7g2 1/2 Error 0 32m
helm-operation-qs8tp 1/2 Error 0 56m
helm-operation-tsfnk 1/2 Error 0 44m
helm-operation-xfgdk 1/2 Error 0 50m
helm-operation-xgm49 1/2 Error 0 9m16s
rancher-666b69dfb5-vx28j 1/1 Running 0 29h
rancher-666b69dfb5-z5mbv 1/1 Running 1 (29h ago) 29h
rancher-webhook-cc596cb8b-h4n55 1/1 Running 0 29h
[root@k8su1:~/app]# kubectl describe pod helm-operation-89wfp -n cattle-system
Name: helm-operation-89wfp
Namespace: cattle-system
Priority: 0
Service Account: default
Node: k8su3/10.190.37.193
Start Time: Mon, 30 Mar 2026 15:56:12 +0800
Labels: pod-impersonation.cattle.io/token=ttljms7lvb6tzfd7w55w5xspzpf2fwr58bd4j7ffpfds8pbjlrmkz2
Annotations: cni.projectcalico.org/containerID: fcd8d5beff4a687ff9a712dd0f5ce6910505b1b9bf6d9d057b8b6d1b9ee5e41d
cni.projectcalico.org/podIP: 10.244.13.85/32
cni.projectcalico.org/podIPs: 10.244.13.85/32
pod-impersonation.cattle.io/cluster-role: pod-impersonation-helm-op-zgwgl
Status: Running
IP: 10.244.13.85
IPs:
IP: 10.244.13.85
Init Containers:
init-kubeconfig-volume:
Container ID: containerd://fc281c50c3205928ec74d99a25d23e339e5024f1ef8cb092a5df794a7caf44b9
Image: 10.190.252.103:8000/rancher/shell:v0.6.2
Image ID: 10.190.252.103:8000/rancher/shell@sha256:224b766c999a10f7ff35847185c34eec027e6eb9720b8bacdde002b44ca1a75f
Port: <none>
Host Port: <none>
Command:
sh
-c
cp /home/.kube/config /tmp/.kube/config
State: Terminated
Reason: Completed
Exit Code: 0
Started: Mon, 30 Mar 2026 15:56:13 +0800
Finished: Mon, 30 Mar 2026 15:56:13 +0800
Ready: True
Restart Count: 0
Environment: <none>
Mounts:
/home/.kube/config from user-kube-configmap (rw,path="config")
/tmp/.kube from user-kubeconfig (rw)
Containers:
helm:
Container ID: containerd://4c8eebe450078b2e828591a99518ffc2d62438a22918d692c4af31136d75c969
Image: 10.190.252.103:8000/rancher/shell:v0.6.2
Image ID: 10.190.252.103:8000/rancher/shell@sha256:224b766c999a10f7ff35847185c34eec027e6eb9720b8bacdde002b44ca1a75f
Port: <none>
Host Port: <none>
Command:
helm-cmd
State: Terminated
Reason: Error
Exit Code: 123
Started: Mon, 30 Mar 2026 15:56:15 +0800
Finished: Mon, 30 Mar 2026 16:01:21 +0800
Ready: False
Restart Count: 0
Environment:
KUBECONFIG: /home/shell/.kube/config
Mounts:
/home/shell/.kube/config from user-kubeconfig (rw,path="config")
/home/shell/helm from data (ro)
/run from run (rw)
/tmp from tmp (rw)
proxy:
Container ID: containerd://dfd5986c1dfac354aa5a2ecb93ab677da9fc9039790a3b3f975f9ac3b1e45aca
Image: 10.190.252.103:8000/rancher/shell:v0.6.2
Image ID: 10.190.252.103:8000/rancher/shell@sha256:224b766c999a10f7ff35847185c34eec027e6eb9720b8bacdde002b44ca1a75f
Port: <none>
Host Port: <none>
Command:
sh
-c
kubectl proxy --disable-filter || true
State: Running
Started: Mon, 30 Mar 2026 15:56:15 +0800
Ready: True
Restart Count: 0
Environment:
KUBECONFIG: /home/shell/.kube/config
Mounts:
/home/shell/.kube/config from admin-kubeconfig (ro,path="config")
/var/run/secrets/kubernetes.io/serviceaccount from pod-impersonation-helm-op-kmr8c-token (ro)
Conditions:
Type Status
PodReadyToStartContainers True
Initialized True
Ready False
ContainersReady False
PodScheduled True
Volumes:
tmp:
Type: EmptyDir (a temporary directory that shares a pod's lifetime)
Medium:
SizeLimit: <unset>
run:
Type: EmptyDir (a temporary directory that shares a pod's lifetime)
Medium:
SizeLimit: <unset>
data:
Type: Secret (a volume populated by a Secret)
SecretName: helm-operation-57c8q
Optional: false
admin-kubeconfig:
Type: ConfigMap (a volume populated by a ConfigMap)
Name: impersonation-helm-op-admin-kubeconfig-rrg5x
Optional: false
user-kubeconfig:
Type: EmptyDir (a temporary directory that shares a pod's lifetime)
Medium:
SizeLimit: <unset>
user-kube-configmap:
Type: ConfigMap (a volume populated by a ConfigMap)
Name: impersonation-helm-op-user-kubeconfig-7bvjs
Optional: false
pod-impersonation-helm-op-kmr8c-token:
Type: Secret (a volume populated by a Secret)
SecretName: pod-impersonation-helm-op-kmr8c-token
Optional: false
QoS Class: BestEffort
Node-Selectors: kubernetes.io/os=linux
Tolerations: cattle.io/os=linux:NoSchedule
node-role.kubernetes.io/control-plane:NoSchedule op=Exists
node-role.kubernetes.io/controlplane=true:NoSchedule
node-role.kubernetes.io/etcd:NoExecute op=Exists
node.cloudprovider.kubernetes.io/uninitialized=true:NoSchedule
node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 26m default-scheduler Successfully assigned cattle-system/helm-operation-89wfp to k8su3
Normal Pulled 26m kubelet Container image "10.190.252.103:8000/rancher/shell:v0.6.2" already present on machine
Normal Created 26m kubelet Created container: init-kubeconfig-volume
Normal Started 26m kubelet Started container init-kubeconfig-volume
Normal Pulled 26m kubelet Container image "10.190.252.103:8000/rancher/shell:v0.6.2" already present on machine
Normal Created 26m kubelet Created container: helm
Normal Started 26m kubelet Started container helm
Normal Pulled 26m kubelet Container image "10.190.252.103:8000/rancher/shell:v0.6.2" already present on machine
Normal Created 26m kubelet Created container: proxy
Normal Started 26m kubelet Started container proxy
describe 的内容是没问题的，正常拉取了镜像，也正常启动了 pod，接下来就得排查 pod 的 log 了，看看为什么启动失败
失败的pod日志如下：
[root@k8su1:~/app]# kubectl logs helm-operation-89wfp -n cattle-system -c helm
helm upgrade --history-max=5 --install=true --labels=catalog.cattle.io/cluster-repo-name=rancher-charts --namespace=cattle-turtles-system --reset-values=true --take-ownership=true --timeout=5m0s --values=/home/shell/helm/values-rancher-turtles-108.0.4-up0.25.4.yaml --version=108.0.4+up0.25.4 --wait=true rancher-turtles /home/shell/helm/rancher-turtles-108.0.4-up0.25.4.tgz
Error: UPGRADE FAILED: pre-upgrade hooks failed: 1 error occurred:
* timed out waiting for the condition
感谢@KSD 龙哥的支持，过滤了cattle-system命名空间，没有注意cattle-turtles-system空间下有2个pod没有拉到镜像：
> k -n cattle-system logs helm-operation-5sfxb
Defaulted container "helm" out of: helm, proxy, init-kubeconfig-volume (init)
helm upgrade --history-max=5 --install=true --labels=catalog.cattle.io/cluster-repo-name=rancher-charts --namespace=cattle-turtles-system --reset-values=true --take-ownership=true --timeout=5m0s --values=/home/shell/helm/values-rancher-turtles-108.0.4-up0.25.4.yaml --version=108.0.4+up0.25.4 --wait=true rancher-turtles /home/shell/helm/rancher-turtles-108.0.4-up0.25.4.tgz
Error: UPGRADE FAILED: pre-upgrade hooks failed: 1 error occurred:
* timed out waiting for the condition
> kubectl -n cattle-turtles-system get pods
NAME READY STATUS RESTARTS AGE
rancher-clusterctl-configmap-cleanup-j9msp 0/1 ImagePullBackOff 0 3m44s
rancher-turtles-controller-manager-7748f6f88d-6j7h6 0/1 ImagePullBackOff 0 30h
> kubectl -n cattle-turtles-system describe pods rancher-turtles-controller-manager-7748f6f88d-6j7h6
Name: rancher-turtles-controller-manager-7748f6f88d-6j7h6
Namespace: cattle-turtles-system
Priority: 0
Service Account: rancher-turtles-manager
Node: k8su3/10.190.37.193
Start Time: Sun, 29 Mar 2026 02:32:56 +0000
Labels: control-plane=controller-manager
pod-template-hash=7748f6f88d
Annotations: cni.projectcalico.org/containerID: 4b786e10f8fd466de5687d3d952fdcc95b63351736c55787302e2d7aa67a13c3
cni.projectcalico.org/podIP: 10.244.13.105/32
cni.projectcalico.org/podIPs: 10.244.13.105/32
kubectl.kubernetes.io/default-container: manager
Status: Pending
IP: 10.244.13.105
IPs:
IP: 10.244.13.105
Controlled By: ReplicaSet/rancher-turtles-controller-manager-7748f6f88d
Containers:
manager:
Container ID:
Image: 10.190.252.103:8000/rancher/turtles:v0.25.4
Image ID:
Port: <none>
Host Port: <none>
SeccompProfile: RuntimeDefault
Command:
/manager
Args:
--leader-elect
--feature-gates=agent-tls-mode=true,no-cert-manager=true,use-rancher-default-registry=true
State: Waiting
Reason: ImagePullBackOff
Ready: False
Restart Count: 0
Limits:
cpu: 500m
memory: 300Mi
Requests:
cpu: 10m
memory: 128Mi
Liveness: http-get http://:9440/healthz delay=15s timeout=1s period=20s #success=1 #failure=3
Readiness: http-get http://:9440/readyz delay=5s timeout=1s period=10s #success=1 #failure=3
Environment:
POD_NAMESPACE: cattle-turtles-system (v1:metadata.namespace)
POD_NAME: rancher-turtles-controller-manager-7748f6f88d-6j7h6 (v1:metadata.name)
POD_UID: (v1:metadata.uid)
Mounts:
/config from clusterctl-config (rw)
/var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-tdlkn (ro)
Conditions:
Type Status
PodReadyToStartContainers True
Initialized True
Ready False
ContainersReady False
PodScheduled True
Volumes:
clusterctl-config:
Type: ConfigMap (a volume populated by a ConfigMap)
Name: clusterctl-config
Optional: false
kube-api-access-tdlkn:
Type: Projected (a volume that contains injected data from multiple sources)
TokenExpirationSeconds: 3607
ConfigMapName: kube-root-ca.crt
Optional: false
DownwardAPI: true
QoS Class: Burstable
Node-Selectors: <none>
Tolerations: node-role.kubernetes.io/control-plane:NoSchedule
node-role.kubernetes.io/master:NoSchedule
node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal BackOff 4m49s (x8012 over 30h) kubelet Back-off pulling image "10.190.252.103:8000/rancher/turtles:v0.25.4"
Warning Failed 4m49s (x8012 over 30h) kubelet Error: ImagePullBackOff
