使用lb非9345端口做高可用

cynen · 2025 年7 月 17 日 08:14

Rancher Server 设置

在线或离线部署：
在线部署

下游集群信息

Kubernetes 版本:
Cluster Type (Local/Downstream):
- 如果 Downstream，是什么类型的集群?(自定义/导入或为托管等):
  1.31.9-rke2r1

用户信息

登录用户的角色是什么？（管理员/集群所有者/集群成员/项目所有者/项目成员/自定义）：
- 如果自定义，自定义权限集：

主机操作系统：
centos7.9

问题描述：

配置了LB, 因为9345被其他应用占用. 因此使用了9344端口

master节点:
10.7.26.1
10.7.26.2
10.7.26.3
agent 节点:
10.7.26.4
10.7.26.5
10.7.26.6

LB_IP:9344 → 指向后端server节点的9345 端口
(10.7.26.1:9345
10.7.26.2:9345
10.7.26.3:9345 )
server 配置:

server: https://LB_IP:9344
token: ***
kube-proxy-arg:
  - "proxy-mode=ipvs"

agent配置

server: https://LB_IP:9344
token: ***
kube-proxy-arg:
  - "proxy-mode=ipvs"

server节点启动后,pod-proxy可以查看日志:

I0717 06:38:46.985814       1 server_linux.go:230] "Using ipvs Proxier"

但是查看agent 日志的时候报错:

kubectl logs -n kube-system kube-proxy-dsv3-mall004
Error from server: Get "https://10.7.26.4:10250/containerLogs/kube-system/kube-proxy-dsv3-mall004/kube-proxy": proxy error from 127.0.0.1:9345 while dialing 10.7.26.4:10250, code 502: 502 Bad Gateway

查看message:

Jul 17 16:12:22 dsv3-mall004 rke2: time="2025-07-17T16:12:22+08:00" level=info msg="Connecting to proxy" url="wss://10.7.26.2:9344/v1-rke2/connect"
Jul 17 16:12:22 dsv3-mall004 rke2: time="2025-07-17T16:12:22+08:00" level=info msg="Connecting to proxy" url="wss://10.7.26.1:9344/v1-rke2/connect"
Jul 17 16:12:22 dsv3-mall004 rke2: time="2025-07-17T16:12:22+08:00" level=info msg="Connecting to proxy" url="wss://10.7.26.3:9344/v1-rke2/connect"
Jul 17 16:12:22 dsv3-mall004 rke2: time="2025-07-17T16:12:22+08:00" level=error msg="Failed to connect to proxy. Empty dialer response" error="dial tcp 10.7.26.2:9344: connect: connection refused"
Jul 17 16:12:22 dsv3-mall004 rke2: time="2025-07-17T16:12:22+08:00" level=error msg="Remotedialer proxy error; reconnecting..." error="dial tcp 10.7.26.2:9344: connect: connection refused" url="wss://10.7.26.2:9344/v1-rke2/connect"

重现步骤：

只需要配置LB的监听端口费 9345 即可

结果：
agent 节点的proxy 的日志无法查看.

预期结果：

proxy-pod日志正常.

截图：

其他上下文信息：

日志

Jul 17 16:12:19 dsv3-mall004 rke2: time="2025-07-17T16:12:19+08:00" level=info msg="Connecting to proxy" url="wss://10.7.26.3:9344/v1-rke2/connect"
Jul 17 16:12:19 dsv3-mall004 rke2: time="2025-07-17T16:12:19+08:00" level=info msg="Connecting to proxy" url="wss://10.7.26.1:9344/v1-rke2/connect"
Jul 17 16:12:19 dsv3-mall004 rke2: time="2025-07-17T16:12:19+08:00" level=info msg="Connecting to proxy" url="wss://10.7.26.2:9344/v1-rke2/connect"
Jul 17 16:12:19 dsv3-mall004 rke2: time="2025-07-17T16:12:19+08:00" level=error msg="Failed to connect to proxy. Empty dialer response" error="dial tcp 10.7.26.1:9344: connect: connection refused"
Jul 17 16:12:19 dsv3-mall004 rke2: time="2025-07-17T16:12:19+08:00" level=error msg="Remotedialer proxy error; reconnecting..." error="dial tcp 10.7.26.1:9344: connect: connection refused" url="wss://10.7.26.1:9344/v1-rke2/connect"
Jul 17 16:12:19 dsv3-mall004 rke2: time="2025-07-17T16:12:19+08:00" level=error msg="Failed to connect to proxy. Empty dialer response" error="dial tcp 10.7.26.3:9344: connect: connection refused"
Jul 17 16:12:19 dsv3-mall004 rke2: time="2025-07-17T16:12:19+08:00" level=error msg="Remotedialer proxy error; reconnecting..." error="dial tcp 10.7.26.3:9344: connect: connection refused" url="wss://10.7.26.3:9344/v1-rke2/connect"
Jul 17 16:12:19 dsv3-mall004 rke2: time="2025-07-17T16:12:19+08:00" level=error msg="Failed to connect to proxy. Empty dialer response" error="dial tcp 10.7.26.2:9344: connect: connection refused"
Jul 17 16:12:19 dsv3-mall004 rke2: time="2025-07-17T16:12:19+08:00" level=error msg="Remotedialer proxy error; reconnecting..." error="dial tcp 10.7.26.2:9344: connect: connection refused" url="wss://10.7.26.2:9344/v1-rke2/connect"

cynen · 2025 年7 月 17 日 09:14

后续我将agent的配置文件修改如下:

server: https://10.7.26.1:9345
# server: https://LB_IP:9344
token: ***
kube-proxy-arg:
  - "proxy-mode=ipvs"

agent节点的proxy pod 正常
查看message日志:

Jul 17 17:07:48 dsv3-mall004 rke2: time="2025-07-17T17:07:48+08:00" level=info msg="Remotedialer connected to proxy" url="wss://10.7.26.3:9345/v1-rke2/connect"
Jul 17 17:07:48 dsv3-mall004 rke2: time="2025-07-17T17:07:48+08:00" level=info msg="Remotedialer connected to proxy" url="wss://10.7.26.2:9345/v1-rke2/connect"
Jul 17 17:07:48 dsv3-mall004 rke2: time="2025-07-17T17:07:48+08:00" level=info msg="Remotedialer connected to proxy" url="wss://10.7.26.1:9345/v1-rke2/connect"

cynen · 2025 年7 月 17 日 09:14

这里不知道为啥,agent可以获取到server集群的所有节点.

ksd · 2025 年7 月 18 日 02:14

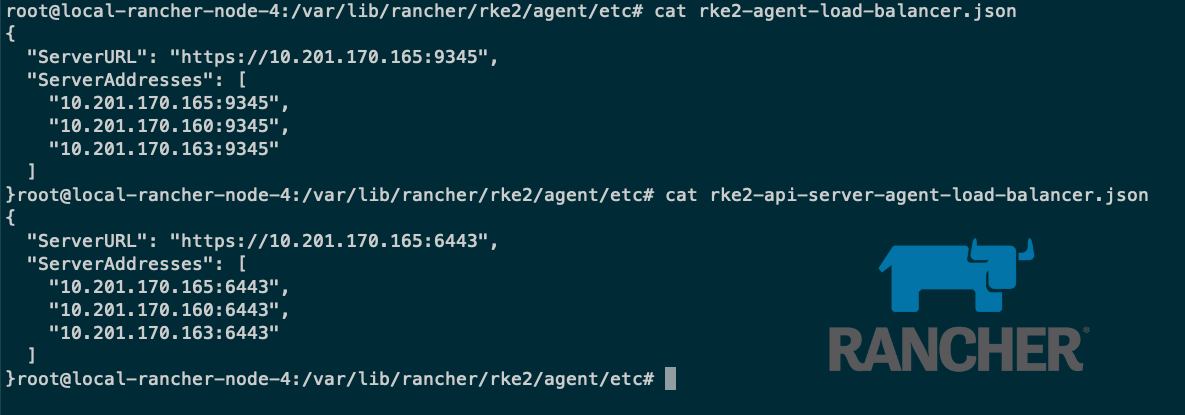

可以的，当你使用任意一个 master 节点的 ip 去注册，注册成功后，agent 会查询集群中所有 api 的地址，然后存储到如下配置中：
